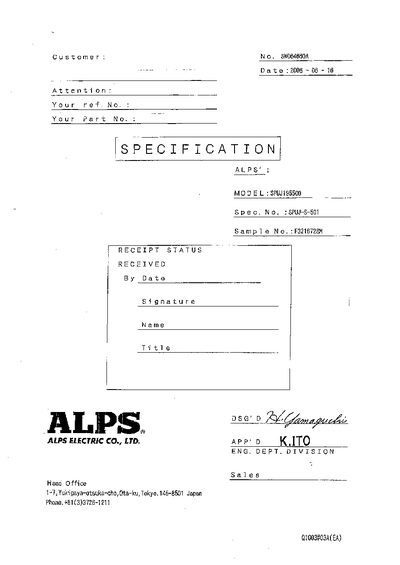

The SPUJ195500 is a low‑current push‑switch intended for electronic equipment. It is supplied by ALPS Electric and conforms to the specification SPUJ‑S‑501. The document lists the switch’s ratings, test conditions, mechanical construction and environmental durability.
Key test parameters include operating temperature from –10 °C to 60 °C, contact resistance not exceeding 20 mΩ, insulation test voltage of 500 VDC, and a voltage‑proof test of 500 VAC. Mechanical tests verify operating force, lock‑hold strength and resistance to vibration, shock and humidity. The switch is qualified for up to 16 000 operating cycles under specified load conditions.
| Operating temperature range | -10 °C to 60 °C |
|---|---|
| Insulation test voltage | 500 VDC |
| Voltage proof test voltage | 500 VAC |
| Rated load | 30 VDC, 0.1 A (resistive) |
The switch can operate from –10 °C up to 60 °C.
