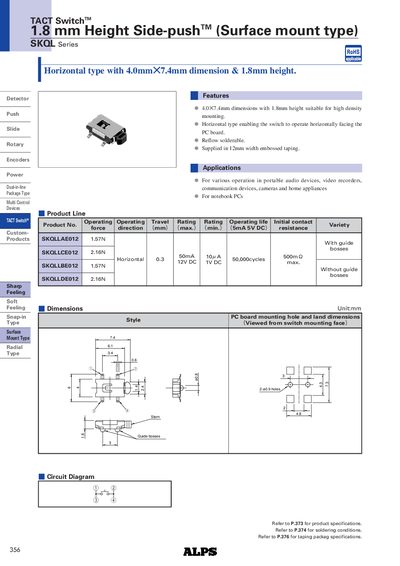

ALPS SKQL Series Manual

Update: 30 September, 2023

SKQL Series is a side-push type switch with a height of 1.8mm. It is suitable for high density mounting. The switch can be operated horizontally facing the PC board. It is reflow solderable and supplied in 12mm width embossed taping.

File format: PDF

Size: -

MD5 Checksum: 8996C9C1BBD14AB302A5A8FF746401D7

Publication date: 08 May, 2012

Downloads: -

PDF Link: ALPS SKQL Series Manual PDF
