This document is about the specification of a low current circuit (secondary circuit) slide switch used for electronic equipment. It has good appearance, construction, and dimensions, and has a rating of 12V DC 0.1A (resistive) and 12V DC 0.5A (resistive).

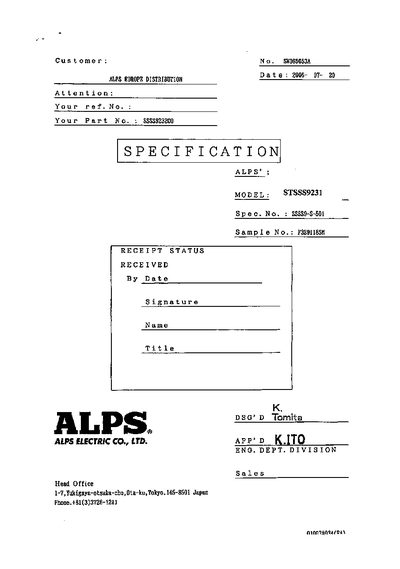

This document specifies the performance and test requirements for the ALPS STSSS9231 slide switch used in electronic equipment. It includes background information, operating and storage temperature ranges, and detailed test conditions for electrical, mechanical and environmental characteristics.
Key sections cover appearance and construction, contact resistance, insulation resistance, voltage proof, mechanical load tests, vibration and shock endurance, solderability, and recommended handling precautions. The datasheet also lists the maximum ratings for resistive loads and provides a circuit diagram for integration.
