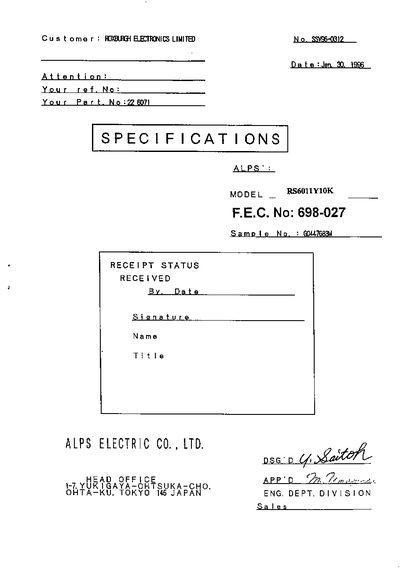

This document is a specification sheet for ROXBURGH aBCTRONICS LIMITB). It provides the specifications and characteristics of the ALPS RS6011Y10K model potentiometer produced by the company.
The RS6011Y10K slide potentiometer data sheet from ALPS Electric lists the electrical characteristics such as overall resistance, rated power, voltage limits, dielectric strength and insulation resistance. It also defines mechanical parameters like travel speed, operating force, stop strength and lever play.
Additional sections cover mounting dimensions, recommended soldering conditions, and safety precautions for installation and use. The document includes detailed drawings of the mounting hole pattern and guidelines for proper lever positioning.
| Rated power | 0.1 W |
|---|---|
| Maximum operating voltage | AC 150 V |
| Dielectric test voltage | 300 V AC 50 Hz RMS |
| Insulation resistance | >100 MΩ |
| Sliding life | 15,000 cycles |
| Travel speed | 20 mm/s |
| Operating force | 30‑250 gf |
| Stop strength (lever >6 mm) | 5 kgf at 2 mm |
The potentiometer is rated for 0.1 W of power.
The maximum operating voltage is AC 150 V (DC‑10 %).
It is designed for 15,000 sliding cycles.
