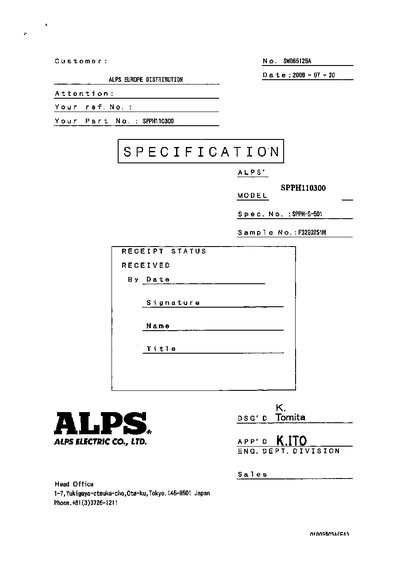

This document is about the specification of SPPH110300 product, which is a low current circuit (secondary circuit) push switch used for electronic equipment.
This document describes the ALPS SPPH110300 low‑current push‑switch, its intended applications, and general construction. It includes appearance, construction, dimensions, and marking details, as well as electrical ratings such as contact resistance and insulation voltage.
The datasheet also defines mechanical performance tests, operating life (10,000 cycles at 15‑20 cycles/min), and environmental tests like temperature, humidity, pressure, vibration, shock, and salt‑corrosion resistance. Solderability and handling precautions are listed at the end.
| Relative humidity range (test condition) | 45 %‑85 % RH |
|---|---|
| Rated load | 0.1 A resistive load |
