This document provides product information of RK09K11 series potentiometers, including models, specifications, features, and application scenarios.

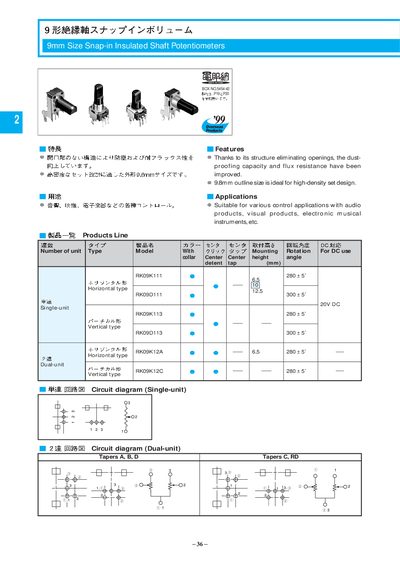

The 9mm snap‑in insulated shaft potentiometers from ALPS are designed for high‑density control applications such as audio, visual and electronic musical instruments. Their compact 9mm shaft and dust‑proof construction make them suitable for a wide range of products.
The handbook lists model variants (e.g., RKOSK111, RKO9D111), outlines dimensions, mounting hole details, rotation angles and other technical data, along with circuit diagrams for single‑unit and dual‑unit configurations.
| Outline size | 98 mm |
|---|---|
| Shaft size | 9 mm |
| Mounting height | 6.5 mm |
The outline size is 98 mm.
They are designed for a mounting height of 6.5 mm.
They are suitable for audio products, visual products, electronic musical instruments, and other control applications.
