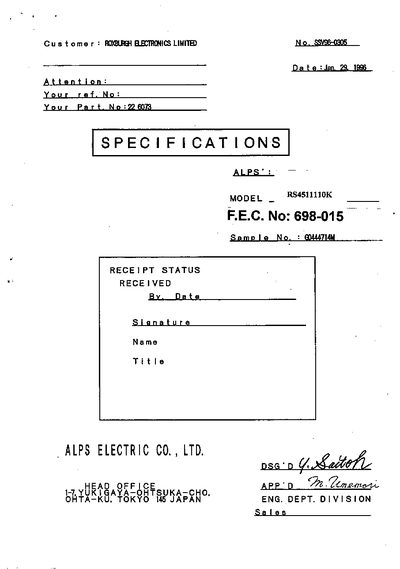

This document is the specification sheet of RS4511110K potentiometer. The specification sheet includes information such as overall resistance, minimum resistance, resistance value, rated power, rated voltage, and maximum operating voltage.
The RS4511110K is a slide‑type potentiometer manufactured by ALPS Electric. It is intended for use in electronic equipment where precise resistance adjustment is required.
The document lists key electrical parameters such as a rated power of 0.125 W, a maximum operating voltage of 50 V AC/10 V DC, and a dielectric test voltage of 300 V AC 50 Hz RMS, as well as mechanical data like an operating force of 30‑250 gf and a lever speed of 20 mm/s.
| Rated power | 0.125 W |
|---|---|
| Maximum operating voltage | 50 V AC / 10 V DC |
| Dielectric test voltage | 300 V AC 50 Hz RMS |
| Insulation resistance | > 100 MΩ |
| Sliding life test | 15,000 cycles |
| Operating force | 30‑250 gf |
The rated power is 0.125 W.
It can handle up to 50 V AC or 10 V DC.
It is rated for 15,000 sliding cycles.
The dielectric test voltage is 300 V AC at 50 Hz RMS.
