This is a product specification sheet. The brand of the product is ALPS, the model is 290006, and the features and characteristics of the product are: total resistance is 10kΩ±20K, rated power is 0.05W, rated voltage is 50V AC, and 20V DC.

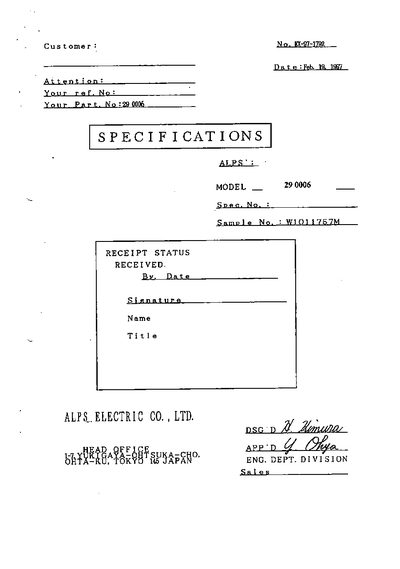

This datasheet describes the electrical characteristics of the Alps 29 0006 resistor, including total resistance tolerance, rated power, rated voltage, sliding noise, insulation resistance and withstand voltage. It also lists mechanical parameters such as rotational angle, overload torque, shaft end stress, and shaft play.
Additional information covers endurance limits, operating and storage temperature ranges, and compliance notes. The document is intended for designers and engineers needing detailed component data.
| Total resistance tolerance | ±20 % |
|---|---|
| Rated power | 0.05 W |
| Maximum working voltage | 20 VDC |
| Sliding noise | < 100 mV |
| Insulation resistance | > 100 MΩ (250 V DC test) |
| Withstand voltage | ≥ 250 V AC for 1 min |
| Overall rotational angle | ≈ 280 ° ± 5 ° |
| Overload torque | 10 ~ 80 kg·cm |
| Rotational life (endurance) | ≥ 5 000 cycles |
| Operating temperature range | -10 °C ~ +60 °C |
| Storage temperature range | -30 °C ~ +70 °C |
The rated power is 0.05 W.
The maximum working voltage is 20 VDC.
Sliding noise is less than 100 mV.
The resistor is guaranteed for at least 5 000 cycles.
