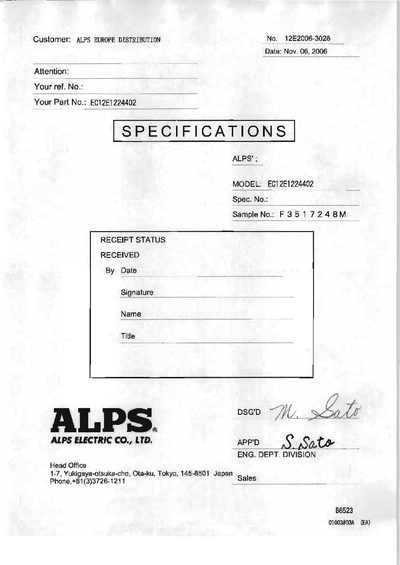

The Alps EC12E1224402 is a rotary encoder intended for use in a wide range of electronic equipment, including AV gear, home appliances, office machines and communications devices. The document provides the part number, model identification, and safety cautions for designers and integrators.
Key information includes the part number, model code, sample number, and date of issue, along with marking guidelines and surface‑mount terminal details. The specifications emphasize safety considerations for high‑reliability applications such as medical, aviation and aerospace equipment.
| Part Number | EC12E1224402 |
|---|---|
| Model Code | EC12F1224402 |
| Sample Number | F3517248M |
| Date of Issue | Nov. 06, 2006 |
| Applicable Product | EC12E1224402 Rotary Encoder |
The part number is EC12E1224402.
It describes the EC12E1224402 rotary encoder.
The document is dated Nov. 06, 2006.
The sample number is F3517248M.
