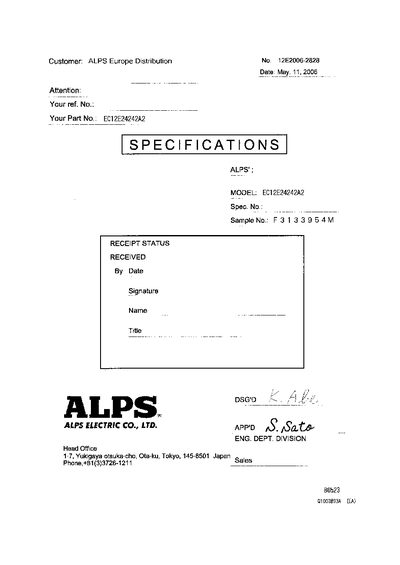

This data sheet describes the EC12E24242A2 rotary encoder manufactured by ALPS. It includes part numbers, customer reference, and safety cautions for use in electronic equipment.
Key specifications such as dimensions, shaft color, and mounting tolerances are listed, along with mechanical drawings and terminal details to aid designers in integrating the encoder into their products.
| Part Number | EC12E24242A2 |
|---|---|
| Date | May 11, 2006 |
| Shaft Color | BLACK |
| Mounting Tolerance | ±0.1 mm |
The part number is EC12E24242A2.
The mounting tolerance is ±0.1 mm.
The shaft color is black.
It was issued on May 11, 2006.
