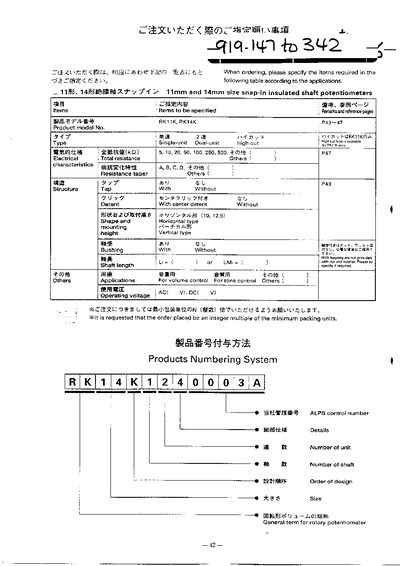

The leaflet describes ALPS snap‑in insulated shaft potentiometers available in 11 mm and 14 mm sizes. Various configurations are offered, including single‑unit and dual‑unit versions, with options for high‑cut tone, volume control, and detent features. Applications range from audio equipment to general purpose control circuits.
Detailed tables list part numbers (e.g., RK11K, RK14K), mechanical dimensions, mounting hole details, electrical characteristics, and ordering quantities. The document also includes mechanical specifications such as torque, rotational angle, and insulation resistance, helping designers select the appropriate part for their design.
| Total resistance | 100 Ω, 250 Ω, 500 Ω |
|---|---|
| Operating voltage | AC only, up to 50 V AC |
| Rotational torque | 10 gf·cm – 80 gf·cm (model dependent) |
The potentiometers are offered with total resistance of 100 Ω, 250 Ω, or 500 Ω.
They are rated for AC operation only, up to 50 V AC.
