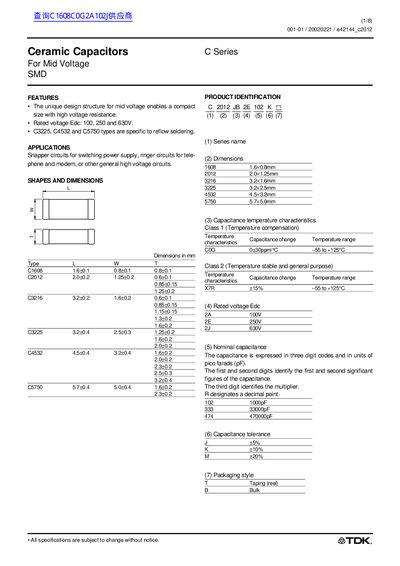

This document introduces the features of Ceramic Capacitors C Series for Mid Voltage SMD, including dimensions, capacitance, voltage, etc.
The C Series from TDK offers mid‑voltage SMD ceramic capacitors with a compact design and high voltage resistance. Features include rated voltages of 100 V, 250 V, and 630 V, and options for Class 1 (C0G) and Class 2 (X7R) temperature characteristics.
The document lists detailed dimensions for each package size (e.g., C1608 1.6 × 0.8 mm, C2012 2.0 × 1.25 mm), capacitance codes, tolerance grades, and packaging styles such as reel (taping) and bulk. Part numbers for each variant are also provided.
| Rated voltage options | 100 V, 250 V, 630 V |
|---|---|
| Class 2 temperature characteristic | X7R (+159 %) |
| C1608 package dimensions | 1.6 mm × 0.8 mm |
The C Series capacitors are offered with rated voltages of 100 V, 250 V, and 630 V.
The C1608 package measures 1.6 mm by 0.8 mm.
