This data sheet introduces TDK Innoveta's Supereta™ iQM series of DC/DC power modules. This series of products has high output power, high efficiency and superior thermal performance, making it ideal for applications with tight space and high power consumption in demanding thermal environments.

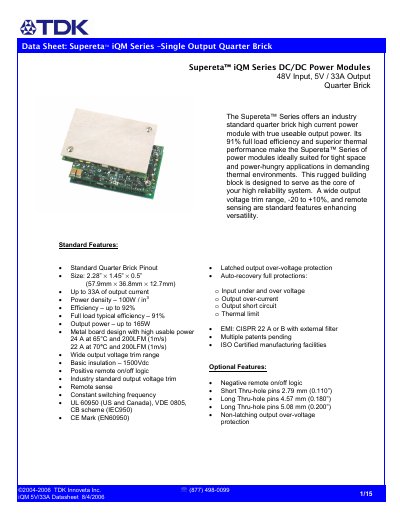

This datasheet describes the TDK Supereta™ iQM Series single output quarter brick DC/DC power module, specifically the iQM48033A050V model. Designed for high current and high efficiency applications, the module features a 5V output at 33A with up to 91% full load efficiency. It is built with a rugged metal board design and includes standard features such as a wide output voltage trim range, remote sensing, and comprehensive auto-recovery protections against over-voltage, over-current, and short circuits.
| Output Voltage | 5V |
|---|---|
| Output Current | 33A |
| Maximum Output Power | 165W |
| Full Load Efficiency | 91% |
| Dimensions | 57.9mm × 36.8mm × 12.7mm |
| Operating Temperature Range | -40 to 115 °C |
| Isolation Voltage Input to Output | 1500 Vdc |
The maximum output current is 33A.
Yes, remote sensing is a standard feature.
The module includes auto-recovery protections for input under/over voltage, output over-current, output short circuit, and thermal limit.
