The CXA-M10 series inverters for 2-cold cathode fluorescent lamps support a wide range of CCFL devices and are characterized by highly stable output current. Employing a resonance-type push-pull circuit, these inverters deliver sine wave output with very low noise levels. Through the use of four different connection methods and combinations of 1 and 2 lamps, different output currents can be selected. Compact, lightweight printed circuit board design. High efficiency (typically 80%). Applications include industrial and other equipment employing LCD panels, products employing small lamps, information terminal devices.

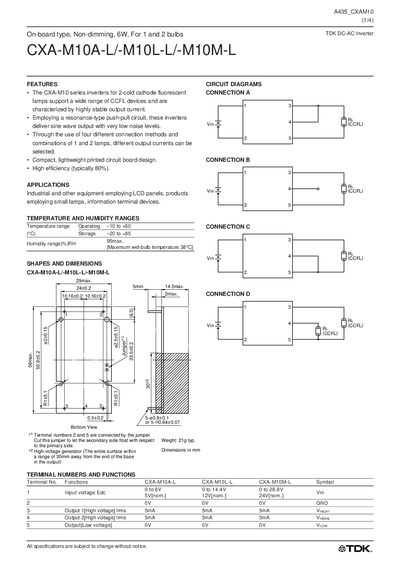

This document is a technical datasheet for the TDK CXA-M10 series of non-dimming, on-board type DC-AC inverters. These devices are designed to support cold cathode fluorescent (CCFL) lamps with highly stable output current using a resonance-type push-pull circuit.
| Output Power | 6W typical |
|---|---|
| Operating Temperature Range | -10 to +60 °C |
| Storage Temperature Range | -20 to +85 °C |
The device operates between -10°C and +60°C.
The typical weight is 21g.
