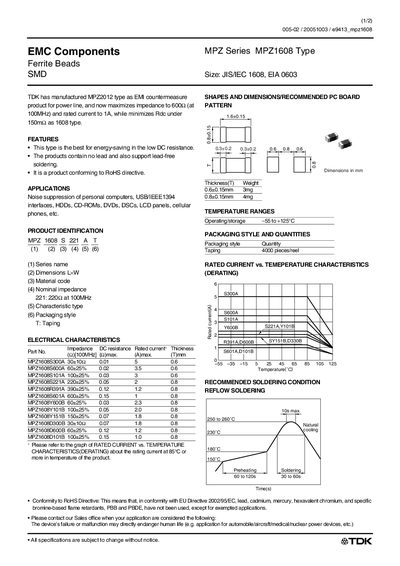

TDK MPZ1608 Series Inductors, Package size is 1608 type, max impedance is 600 ohm (at 100MHz), rated current is 1A, max DC resistance is less than 150 mΩ.
The MPZ1608 series are surface‑mount ferrite beads (size JIS/IEC 1608, EIA 0603) designed for EMI suppression in PCs, USB, HDDs, LCD panels, cellular phones and more. They offer low DC resistance (under 150 mΩ) and high impedance (2200 Ω at 100 MHz) while supporting up to 1 A rated current.
The component is RoHS‑compliant, lead‑free, and supplied in tape packaging of 4000 pieces per reel. It operates from –55 °C to +125 °C and includes detailed electrical curves for impedance, reactance and resistance across frequency.
| Size | JIS/IEC 1608, EIA 0603 |
|---|---|
| Nominal Impedance | 2200 Ω at 100 MHz |
| Rated Current | Up to 1 A |
| DC Resistance | Under 150 mΩ |
| Operating Temperature Range | -55 °C to +125 °C |
| Packaging | Taping, 4000 pieces/reel |
| RoHS Compliance | Yes |
| Lead‑free | Yes |
The MPZ1608 is sized to JIS/IEC 1608, EIA 0603 standards.
Yes, it conforms to the RoHS directive.
It operates from –55 °C to +125 °C.
