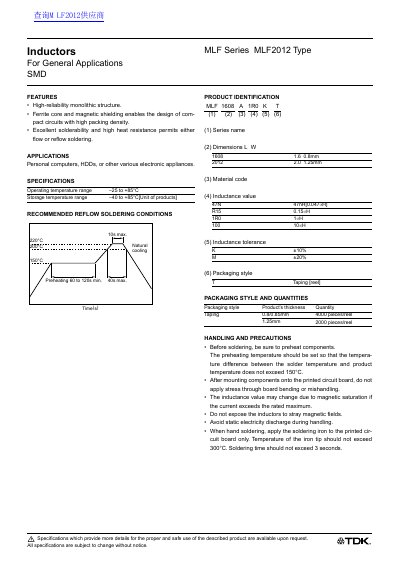

The document describes the features and characteristics of an inductor product called MLF Series, including high-reliability monolithic structure, ferrite core, and magnetic shielding. It is suitable for personal computers, HDDs, and various other electronic appliances.
The MLF2012 series is a high‑reliability monolithic SMD inductor with a ferrite core and magnetic shielding, suitable for personal computers, hard‑disk drives and other electronic appliances. It offers excellent solderability and high heat resistance for both flow and reflow soldering.
The document lists detailed specifications such as inductance values, tolerances, rated current, temperature ranges, dimensions, and packaging. It also includes recommended soldering conditions, handling precautions, and typical electrical characteristic curves. This manual is written in Chinese.
| Operating temperature range | –25 to +85°C |
|---|---|
| Dimensions (mm) | 1.6 × 0.8 |
The temperature difference should not exceed 150 °C.
The iron tip temperature should not exceed 300 °C.
The storage temperature range is –40 °C to +85 °C.
