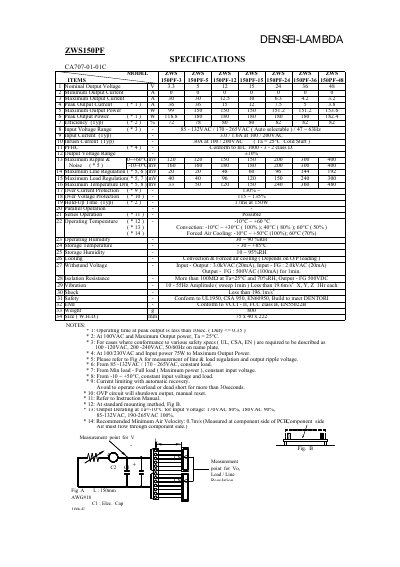

DENSEI-LAMBDA ZWS150PF SPECIFICATIONS CA707-01-01C is a Z series DC power supply produced by DENSEI-LAMBDA. This power supply supports 3.3V, 5V, 12V, 15V, 24V, 36V, and 48V outputs, with an output current range of 0-30A.
The ZWS150PF is a modular DC‑DC power supply offering multiple nominal output voltages from 3.3 V to 48 V with selectable input ranges of 85‑132 VAC or 170‑265 VAC. It delivers up to 153.6 W of output power with typical efficiencies of up to 82 % and includes protection features such as over‑current and over‑voltage protection.
The device is designed for both convection and forced‑air cooling, with derating curves provided for various mounting configurations and ambient temperatures. Mechanical dimensions are 75 mm × 40 mm × 222 mm and it weighs approximately 800 g. Safety and compliance conform to IEC, UL, CSA, and other relevant standards.
| Nominal Output Voltage | 3.3‑48 V |
|---|---|
| Maximum Output Power | up to 153.6 W |
| Isolation Resistance | >10 MΩ at 25 °C, 70 %RH |
| Weight | 800 g |
The 48 V version can deliver up to 153.6 W of output power.
