The SuperetaTM iQM Series is a 48V input, 2.5V/40A output quarter brick DC/DC power module. It offers an industry standard quarter brick high current power module with true useable output power. The module features 89.5% typical efficiency at full load (no heat sink) and superior thermal performance, making it ideal for tight space and power-hungry applications in demanding thermal environments. It is designed to serve as the core of a high reliability system. The module also includes standard features such as a wide output voltage trim range (-20 to +10%), remote sensing, and positive remote on/off logic.

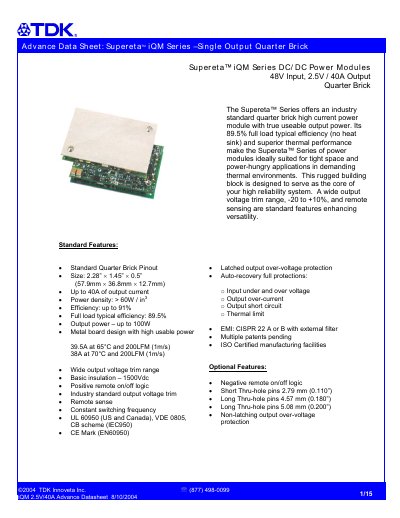

This document is an advance datasheet for the Supereta™ iQM Series, specifically the iQM48040A025V single output quarter brick power module. Designed for high reliability systems, it offers a wide output voltage trim range and remote sensing as standard features. The module provides up to 40A of output current with a full load typical efficiency of 89.5% and no heat sink required.
| Output Voltage | 2.5V |
|---|---|
| Output Current | 40A |
| Maximum Output Power | 100W |
| Full Load Typical Efficiency | 89.5% |
| Dimensions | 57.9mm × 36.8mm × 12.7mm |
| Operating Temperature Range | -40 to 117 °C |
The module features a wide output voltage trim range of -20% to +10%.
No, the module has superior thermal performance and does not require a heat sink.
The module includes auto-recovery full protections for input under/over voltage, output over-current, output short circuit, and thermal limit.
