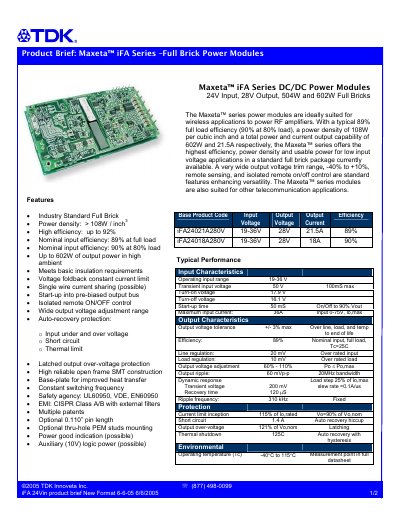

TDK Innoveta iFA24021A280V/iFA24018A280V DC/DC Power Modules Product Brief

Maxeta™ iFA Series Full Brick DC/DC Power Modules, 24V Input, 28V Output, 504W and 602W Full Bricks

Brand: TDK
Category: Electronic Original
Document type: Product Leaflet
Language: English
Pages: 2
File format: PDF
File size: 178 KB
Published: 04 December, 2012
Updated: 30 September, 2023
MD5 checksum: 1C62C3FE96479D10050663C9CDE23CFE
PDF: TDK Innoveta iFA24021A280V/iFA24018A280V DC/DC Power Modules Product Brief PDF

About this manual

The Maxeta™ iFA Series consists of full brick DC/DC power modules designed for 24V input and 28V output applications. These modules deliver output powers of 504W and 602W with high efficiency ratings of 89% and 90% respectively. They are engineered for wireless communication and telecommunication applications, featuring a power density exceeding 108W per cubic inch.

What's inside

Product Overview
Input Characteristics
Output Characteristics
Protection Features
Environmental Specifications
Features
Ordering Information
Pin Function
Safety Standards

Specifications

Input Voltage Range	19-36 V
Output Voltage	28V
Output Current (iFA24021A280V)	21.5A
Output Current (iFA24018A280V)	18A
Efficiency (iFA24021A280V)	89%
Power Density	> 108W / inch 3
Operating Temperature	-40 °C to 115 °C
Output Voltage Adjustment	60% - 110%

Frequently asked questions

Is remote ON/OFF control available?

Yes, isolated remote ON/OFF control is a standard feature.

What safety standards do these modules meet?

They meet UL60950, VDE, and EN60950 safety standards.
