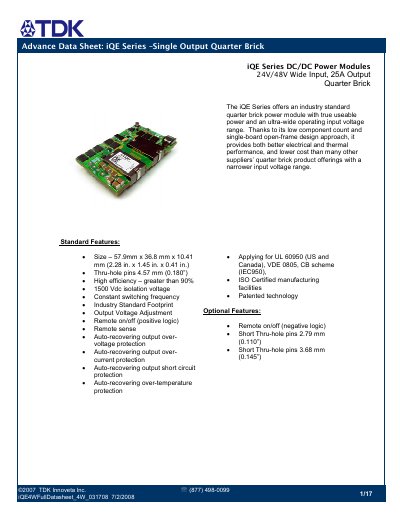

The iQE Series offers an industry standard quarter brick power module with true useable power and an ultra-wide operating input voltage range. Thanks to its low component count and single-board open-frame design approach, it provides both better electrical and thermal performance, and lower cost than many other suppliers’ quarter brick product offerings with a narrower input voltage range.
The iQE Series offers an industry standard quarter brick power module with a true usable power rating and an ultra-wide operating input voltage range. Its low component count and single-board open-frame design approach provide better electrical and thermal performance, along with lower cost compared to many other suppliers' offerings.
Standard features include 1500 Vdc isolation voltage, constant switching frequency, and auto-recovering protections for output over-voltage, over-current, short circuit, and over-temperature. Optional features such as remote on/off (positive or negative logic) and remote sense are available.
| Size | 57.9mm x 36.8 mm x 10.41 mm (2.28 in. x 1.45 in. x 0.41 in.) |
|---|---|
| Isolation Voltage | 1500 Vdc |
| Efficiency | greater than 90% |
| Operating Input Voltage Range | 18 to 60 Vdc |
| Output Current (Max) | 25 A |
| Operating Temperature Range | -40 to 125 °C |
The absolute maximum continuous input voltage rating is 63 Vdc.
No, the power modules are not internally fused and require an external input line fuse with a maximum value of 15A.
