This document describes the features and characteristics of the 16F(R) series standard recovery diodes, including high surge current capability, availability of avalanche types, stud cathode and stud anode versions, wide current range, and voltage ratings up to 1200V. They are commonly used in applications such as battery chargers, converters, power supplies, and machine tool controls.

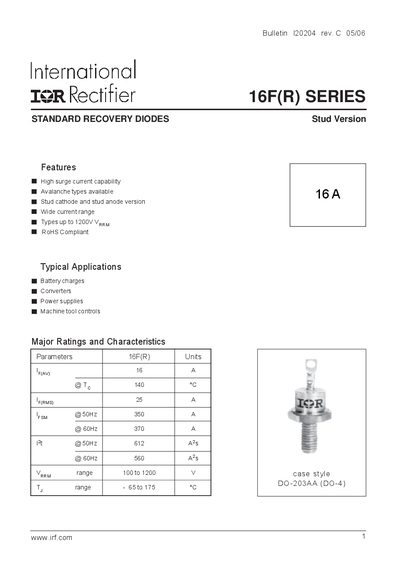

The 16F(R) Series rectifiers from International Rectifier are designed for industrial and consumer level power conversion applications. They offer high surge current capability, avalanche versions, and both stud cathode and stud anode configurations.
The bulletin lists detailed electrical ratings (up to 1200 V, average forward current 16 A, RMS forward current 25 A), thermal limits (junction temperature –65 °C to 175 °C, thermal resistance 1.6 K/W), mechanical data (DO‑203AA case style, weight ~7 g), and ordering codes for standard and avalanche devices. Typical applications include battery chargers, converters, power supplies, and machine‑tool controls.
| Maximum average forward current | 16 A |
|---|---|
| Maximum RMS forward current | 25 A |
| Voltage rating range | 100 V to 1200 V |
| Junction operating temperature range | -65 °C to 175 °C |
| Thermal resistance, junction‑to‑case | 1.6 K/W |
| Case style | DO‑203AA (DO‑4) |
| Approximate weight | 7 g |
Typical applications include battery chargers, converters, power supplies, and machine‑tool controls.
The maximum average forward current is 16 A at a case temperature of 140 °C.
The series covers voltage ratings from 100 V up to 1200 V.
The junction can operate from –65 °C to 175 °C.
