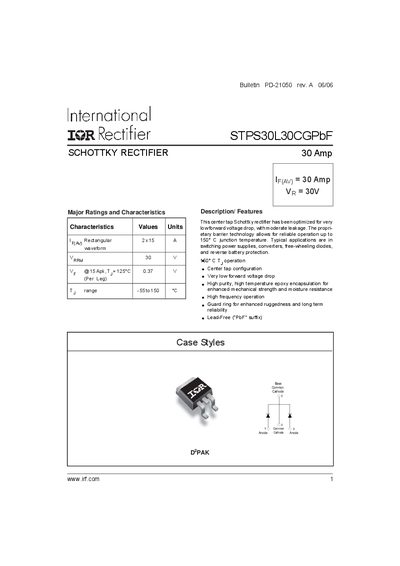

STPS30L30CGPbF is a 30A center tap Schottky rectifier produced by irf company. It has the characteristics of low voltage drop, high frequency and reliable durability.
The STPS30L30CGPbF is a center‑tap Schottky rectifier optimized for low forward voltage drop and moderate leakage. It features a lead‑free (PbF) package, high‑purity epoxy encapsulation, and a guard ring for enhanced ruggedness, making it suitable for switching power supplies, converters, free‑wheeling diodes and reverse‑battery‑protection circuits.
Key specifications include a maximum reverse voltage of 30 V, a continuous forward current rating of 30 A (50 % duty at 140 °C), forward voltage drops as low as 0.46 V at 15 A, and a junction capacitance of 1500 pF. Thermal resistance is 1.5 °C·W (junction‑to‑case) and the device is rated for operation from –55 °C to 150 °C. Mechanical data such as package dimensions, weight (≈2 g) and mounting torque (6‑12 kg·cm) are also provided.
| Maximum Reverse Voltage (V_RRM) | 30 V |
|---|---|
| Weight | ≈2.07 g |
| Mounting Torque | 6‑12 kg·cm |
The device is rated for a maximum reverse voltage of 30 V.
Yes, the “PbF” suffix indicates a lead‑free package.
It uses a D‑Pak (D?Pak) surface‑mount package.
