The MBR16.. Schottky rectifier is a high-performance rectifier with an average current rating of 16 amps and a reverse voltage rating of 35-45 volts. It features low reverse leakage current, high reliability, high frequency operation, high mechanical strength, moisture resistance, etc. It is suitable for applications such as switching power supplies, converters, free-wheeling diodes and reverse battery protection.

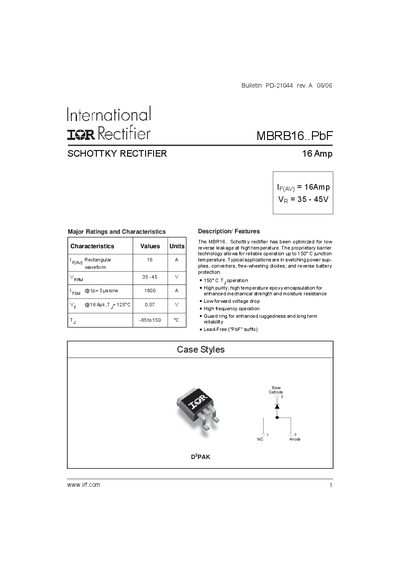

The MBRB16..PbF series are lead‑free Schottky rectifiers optimized for low reverse leakage and high‑temperature operation up to 150 °C. They are suited for switching power supplies, free‑wheeling diodes, converters and reverse‑battery‑protection applications.
The bulletin provides detailed electrical ratings such as forward current, reverse voltage, forward voltage drop, junction capacitance, as well as mechanical data, package dimensions, tape‑and‑reel handling information, and ordering codes.
| Average Forward Current (IF(AV)) | 16 A |
|---|---|
| Forward Voltage Drop (VF) @ 125 °C | 0.57 V |
| Junction Temperature Range | -65 °C to 150 °C |
| Junction Capacitance (Cj) | 1400 pF |
| Maximum Instantaneous Reverse Current | 0.2 mA @ 25 °C |
| Package Style | D‑Pak (SMD‑220) |
The device is rated for a maximum average forward current of 16 A.
Yes, the PbF suffix indicates the device is lead‑free.
The forward voltage drop at 125 °C is 0.57 V.
