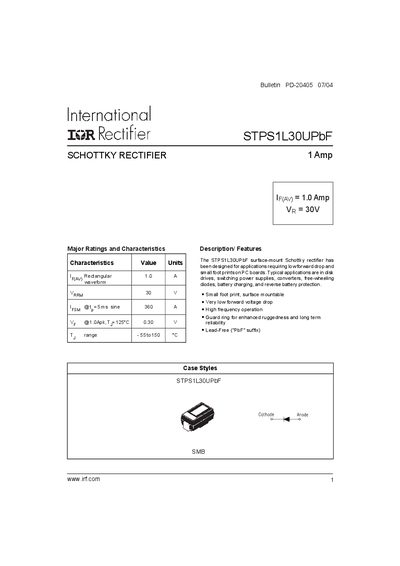

STPS1L30UPbF is a Schottky rectifier produced by IRF. The rated direct reverse voltage is 30V and the rated forward current is 1A. The diode has the characteristics of small package, low forward voltage drop, high frequency operation, and is widely used in switching power supplies, converters, disk drives, etc.
The STPS1L30UPbF is a surface‑mount Schottky rectifier designed for low forward drop and compact PCB footprints. It is suited for applications such as switching power supplies, converters, free‑wheeling diodes, battery charging and reverse‑battery protection.
The device is supplied in an SMB (DO‑214AA) package, is lead‑free (PbF suffix), and is qualified for operation from –55 °C to 150 °C. Detailed electrical and thermal specifications are provided for designers.
| Forward Voltage Drop (1 A, 25 °C) | 0.420 V |
|---|---|
| Package Style | SMB (DO‑214AA) |
| Lead‑Free | Yes |
The device can handle a maximum average forward current of 1.0 A at 50 % duty cycle and 106 °C.
The maximum DC reverse voltage is 30 V.
Yes, the part is lead‑free, indicated by the "PbF" suffix.
It is supplied in an SMB (DO‑214AA) surface‑mount package.
