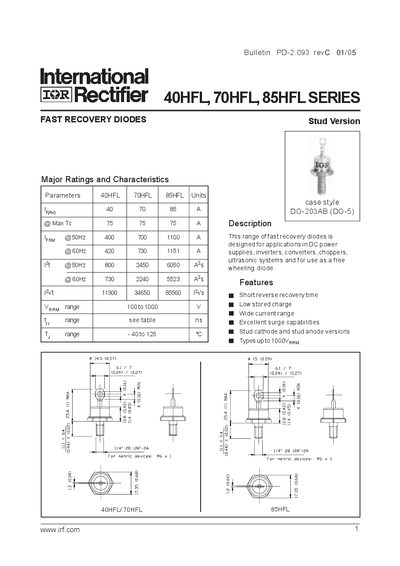

The 40HFL, 70HFL and 85HFL series fast recovery diodes feature short reverse recovery time, low stored charge, wide current range and excellent surge capability. They are available in stud cathode and stud anode versions, with VRRM range of 100 to 1000 V.
The handbook describes the 40HFL, 70HFL and 85HFL series of fast recovery diodes, covering electrical ratings, reverse recovery performance, and thermal/mechanical data. It is intended for designers selecting diodes for DC power supplies, inverters, converters and chopper applications.
Key data include maximum reverse voltage of 1000 V, forward current ratings of 40 A, 70 A and 85 A respectively, junction operating temperature range of –40 °C to 125 °C, and a DO‑203AB (DO‑5) case style. Thermal resistance, surge capability and typical forward/reverse recovery curves are also provided.
| Maximum Reverse Voltage | 1000 V |
|---|---|
| Junction Operating Temperature Range | -40 °C to 125 °C |
| Case Style | DO-203AB (DO-5) |
The 40HFL series is rated for up to 1000 V reverse voltage.
The diodes operate from –40 °C to 125 °C junction temperature.
They use a DO‑203AB (DO‑5) case style.
