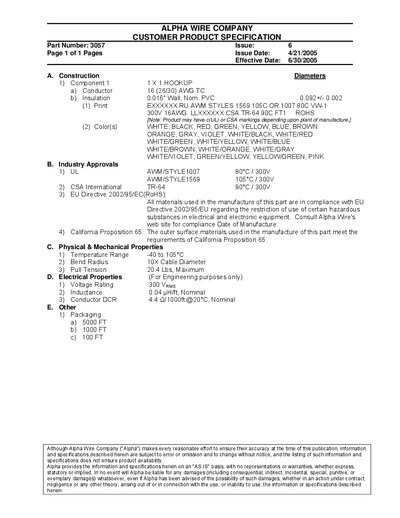

This document is a product specification from Alpha Wire Company, describing the construction diameters, colors, and industry approvals of the product.
This specification sheet for Alpha Wire part number 3057 provides detailed construction information, including conductor size, insulation thickness, and available color codes. It also outlines industry approvals such as UL and CSA listings and compliance with EU RoHS and California Proposition 65.
Physical and mechanical data cover temperature range, bend radius, pull tension, and packaging options, while electrical properties include voltage rating, inductance, and conductor resistance. The document concludes with standard disclaimer language.
| Conductor AWG | 16 AWG |
|---|---|
| Insulation Wall Thickness | 0.016 in |
| Voltage Rating | 300 Vrms |
| Temperature Range | -40 to 105°C |
| Bend Radius | 10× cable diameter |
| Maximum Pull Tension | 20.4 lbs |
| Inductance | 0.04 µH/ft |
| Conductor DCR | 4.4 Ω·ft @20°C (nominal) |
| Packaging Lengths | 5000 ft, 1000 ft, 100 ft |
The Alpha Wire 3057 is rated for 300 Vrms.
It can be used from –40 °C up to 105 °C.
The wire is available in 5000 ft, 1000 ft, and 100 ft packages.
