The document introduces a series of hook-up wires with PVC insulation, including specifications such as strand count, gauge, insulation thickness, diameter, etc. It also provides color codes for different colored wires and electrical characteristics.

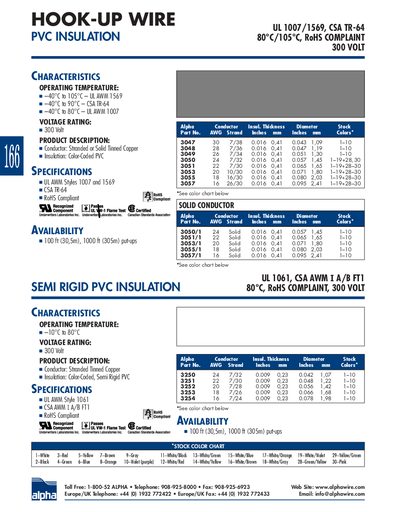

The Alpha Hook-up Wire handbook describes the product’s characteristics, including operating temperature limits for UL 1007, UL 1569, and CSA TR‑64 standards, as well as a 300 V rating. It lists conductor options (stranded or solid tinned copper) and PVC insulation that is color‑coded and RoHS compliant.
The document also includes detailed tables of wire sizes, dimensions, and availability for 100 ft and 1000 ft lengths, a color chart for insulation identification, and contact information for Alpha Wire sales and support.
| Operating Temperature (UL 1007) | -40°C to 80°C |
|---|---|
| Operating Temperature (UL 1569) | -40°C to 105°C |
| Operating Temperature (CSA TR‑64) | -40°C to 90°C |
| Voltage Rating | 300 Volt |
| Conductor Material | Stranded or Solid Tinned Copper |
| Insulation Type | Color‑Coded PVC (semi‑rigid) |
| RoHS Compliance | Yes |
The wire is rated for 300 Volt.
UL 1007 specifies an operating temperature from –40 °C to 80 °C.
Yes, the wire is RoHS compliant.
The insulation is color‑coded with a chart that includes white, red, yellow, brown, gray, black, green, blue, orange, violet, and other combinations.
