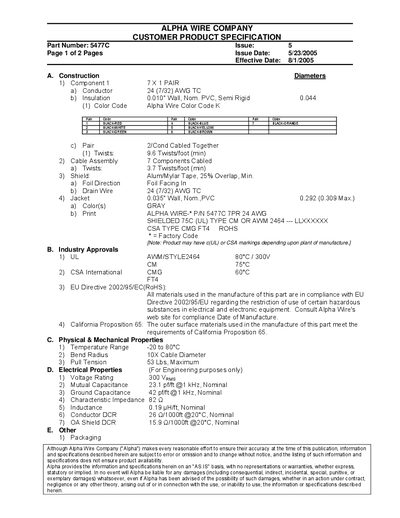

This Customer Product Specification provides detailed information for Alpha Wire part number 5477C. It includes construction details, color code, shielding, and physical dimensions of the 7‑pair, 24 AWG cable.
The document also lists industry approvals (UL, CSA, RoHS, California Proposition 65), electrical characteristics such as voltage rating, capacitance, impedance, and mechanical properties, as well as available packaging lengths and warranty disclaimer.
| Voltage Rating | 300 Vrms |
|---|---|
| Mutual Capacitance | 23.1 pF/ft @1 kHz |
| Ground Capacitance | 42 pF/ft @1 kHz |
| Characteristic Impedance | 82 Ω |
| Inductance | 0.19 µH/ft |
| Temperature Range | -20 °C to 80 °C |
| Pull Tension (Maximum) | 53 lbs |
| Jacket Color | Gray |
The cable can be used from –20 °C up to 80 °C.
The cable is rated for 300 Vrms.
Lengths of 1000 ft, 500 ft, 100 ft, or bulk (made‑to‑order) are available.
