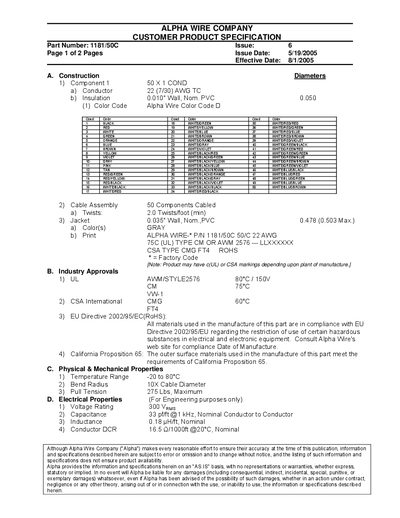

The Customer Product Specification for Alpha Wire part number 1181/50C details the construction of the cable, including conductor size, insulation, and jacket dimensions. It also provides physical and mechanical properties such as temperature range, bend radius, and pull tension.
The document lists electrical characteristics like voltage rating, capacitance, inductance, and conductor resistance, and cites industry approvals including UL, CSA, EU RoHS, and California Proposition 65 compliance.
| Conductor size | 22 (7/30) AWG TC |
|---|---|
| Insulation thickness | 0.010" Wall, Nom. PVC 0.050 |
| Jacket thickness | 0.035" Wall, Nom., PVC 0.478 (0.503 Max.) |
| Temperature range | -20 to 80°C |
| Bend radius | 10× cable diameter |
| Maximum pull tension | 275 lbs |
| Voltage rating | 300 Vrms |
| Capacitance | 33 pF/ft @1 kHz, Nominal |
| Inductance | 0.18 µH/ft, Nominal |
| Conductor DCR | 16.5 Ω·mil/ft @20°C, Nominal |
The specified temperature range is –20 °C to 80 °C.
The wire can withstand a maximum pull tension of 275 lbs.
It is approved by UL (AWM/STYLE2576), CSA International (CMG), complies with EU RoHS, and meets California Proposition 65 requirements.
