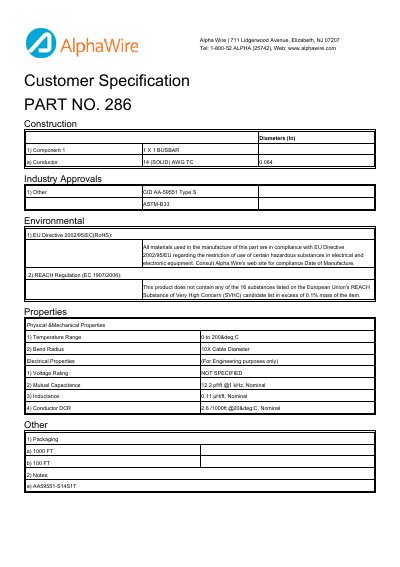

This document provides the technical specifications for Alpha Wire part number 286, a solid‑conductor busbar. It includes construction details, physical and mechanical properties, electrical characteristics, and packaging options.
The sheet also confirms RoHS and REACH compliance, listing the maximum allowable substance limits and the applicable EU directives. Packaging is offered in 100‑ft and 1000‑ft lengths, and the document includes a RoHS Certificate of Compliance.
| Conductor | 14 (SOLID) AWG TC 0.064 |
|---|---|
| Bend Radius | 10× Cable Diameter |
| Voltage Rating | NOT SPECIFIED |
| Mutual Capacitance | 12.2 pF/ft @1 kHz |
| Inductance | 0.11 µH/ft |
| Packaging Lengths | 100 ft, 1000 ft |
| Lead Content (RoHS) | ≤0.1 % by weight |
The voltage rating is not specified in the data sheet.
The busbar is offered in 100‑ft and 1000‑ft lengths.
