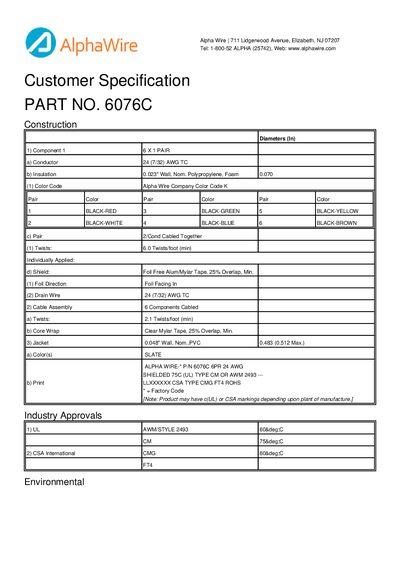

This Customer Specification describes Alpha Wire part number 6076C, a shielded 24 AWG (7/32) cable assembly. It lists the construction of the cable, color‑code pairs, shielding details, and packaging options.
The document also provides environmental compliance (RoHS, California Proposition 65), industry approvals (UL, CSA), and technical specifications such as temperature range, voltage rating, impedance, inductance, capacitance, and attenuation.
| Voltage Rating | 300 V |
|---|---|
| Characteristic Impedance | 115 Ω |
| Inductance | 0.24 µH/ft (nominal) |
| Mutual Capacitance | 12 pF/ft @1 kHz (nominal) |
| Velocity of Propagation | 76 % |
| Attenuation (100 kHz) | 0.25 dB/100 ft |
| Pull Tension (maximum) | 63 lb |
The cable has a voltage rating of 300 V.
Yes, Alpha Wire certifies that part 6076C complies with the EU RoHS Directive 2002/95/EC.
