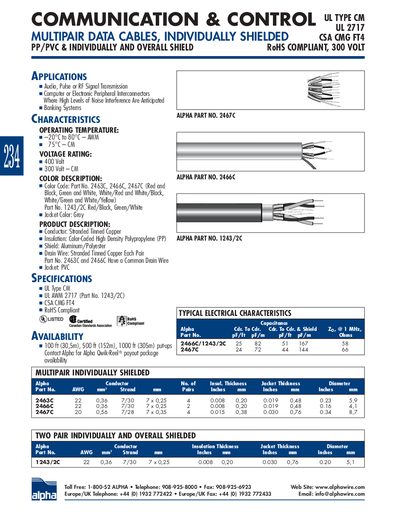

This product is a communication and control multipair data cable that uses individually shielded PP/PVC and individually and overall shielded. It is mainly used for audio, pulse or RF signal transmission, computer or electronic peripheral interconnectors, and banking systems where high levels of noise interference are expected.
The Alpha Wire UL Type CM cable is a multipair data cable with individual shielding, designed for audio, pulse or RF signal transmission and computer or electronic peripheral interconnectors where high levels of noise interference are anticipated. It complies with UL 2717, CSA CMG FT4, and RoHS, and is rated for 300 V operation.
Key specifications include a temperature range of -20 °C to 80 °C, stranded tinned copper conductors, high‑density polypropylene insulation, PVC jacket, and a common drain wire. Various color‑coded part numbers are available for different wiring configurations, and the cable is offered in reel packages.
| Voltage rating | 300 V (CM) |
|---|---|
| Operating temperature | -20 °C to 80 °C |
| UL standard | UL Type CM (UL 2717) |
| CSA standard | CSA CMG FT4 |
| RoHS compliance | Yes |
| Conductor material | Stranded tinned copper |
| Insulation material | Color‑coded high density polypropylene (PP) |
| Jacket material | PVC |
| Drain wire | Stranded tinned copper |
The cable is rated for 300 V (CM).
Yes, the cable is RoHS compliant.
It meets UL 2717 (UL Type CM) and CSA CMG FT4 standards.
It is suitable for audio, pulse or RF signal transmission and computer or electronic peripheral interconnectors where high noise interference is anticipated.
