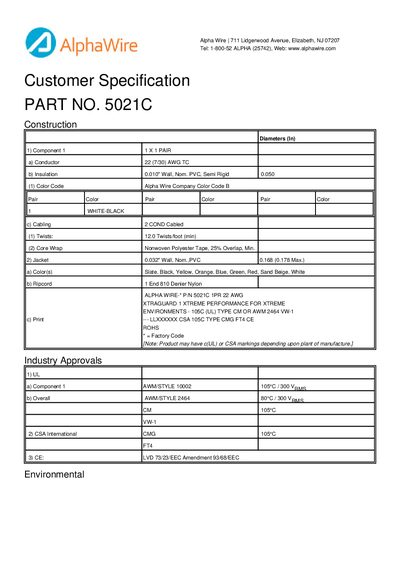

This Customer Specification for Alpha Wire part number 5021C provides detailed construction information, including conductor size, insulation and jacket dimensions, color coding, and packaging options. It also lists the physical and mechanical properties such as temperature range, bend radius, pull tension, and sunlight resistance.
The document includes electrical characteristics like voltage rating, mutual capacitance, inductance, and conductor resistance, as well as industry approvals and compliance statements for UL, CSA, CE, and RoHS directives. A RoHS Certificate of Compliance is attached, confirming the part meets EU restriction requirements.
| Conductor size | 22 AWG |
|---|---|
| Insulation wall thickness | 0.010" nominal |
| Jacket wall thickness | 0.032" nominal (0.168" max) |
| Temperature range | -20 to 105°C |
| Voltage rating | 300 V |
| Pull tension (maximum) | 11 lbs |
| Bend radius | 10× cable diameter |
| Sunlight resistance | Yes |
| Mutual capacitance | 23.5 pF @1 kHz |
| Inductance | 0.18 µH |
| Conductor DCR | 16.2 Ω/1000 ft @20°C |
The part is rated for temperatures from -20 °C to 105 °C.
The voltage rating is 300 V.
Packaging is offered in 1000 ft, 500 ft, 100 ft reels, or bulk made‑to‑order.
