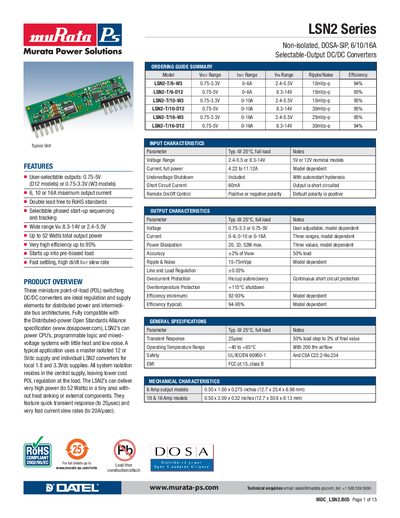

Features and characteristics of LSN2 Series Non-isolated, DOSA-SIP, 6/10/16A Selectable-Output DC/DC Converters.
The LSN2 Series from Murata Power Solutions are non‑isolated, selectable‑output DC/DC converters available in 6 A, 10 A and 16 A versions. They provide low‑noise, high‑efficiency power conversion for point‑of‑load applications and comply with RoHS and safety standards.
The document includes ordering tables, electrical and mechanical characteristics, remote control options, safety certifications, and detailed technical notes on filtering, sense, and startup behavior.
| Output Voltage Range (W3 models) | 0.75‑3.3 V |
|---|---|
| Typical Efficiency | 94‑95 % |
| Operating Temperature Range | -40 °C to +85 °C |
| Mechanical Dimensions (6 A models) | 0.50 × 1.00 × 0.275 in |
Typical efficiency of the LSN2 converters is between 94 % and 95 %.
W3 models accept an input voltage range of 2.4 V to 5.5 V.
The series complies with UL/EC/EN 60950‑1 and CSA‑C22.2 No. 234 safety standards.
