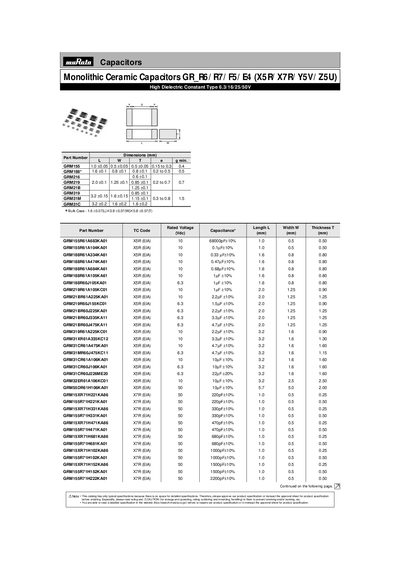

This datasheet provides information on Murata's MLCC products, including product model, rated voltage, rated capacitance, dimensions, etc.
The document lists part numbers, dimensions, and capacitance values for Murata's monolithic ceramic capacitor families GR_R6, R7, F5, and E4, covering X5R, X7R, Y5V, and Z5U dielectric types. Typical package sizes, capacitance ranges, and tolerance values are presented for each series.
Detailed specifications and test methods are described, including operating temperature ranges, rated‑voltage limits, dielectric‑strength tests, and solderability procedures. The catalog also outlines measurement methods for capacitance, dissipation factor, and temperature coefficient, ensuring compliance with Murata's quality standards.
| Package dimensions (GRM155) | 1.0 mm × 0.5 mm × 0.5 mm |
|---|---|
| Operating temperature range (R7 series) | -55 °C to +125 °C |
| Capacitance tolerance | ±10 % |
The R7 series operates from –55 °C to +125 °C.
No failure should be observed when 300 % of the rated voltage is applied.
