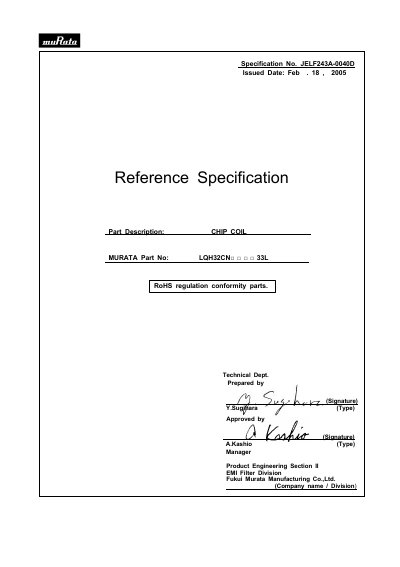

This specification is related to the LQH32CN□ □ □ □ 33L series chip coil, including the scope, model coding, rated range, test conditions and other information.
This specification describes the LQH32CN 33L series chip coil manufactured by Murata. It covers part numbering, rating, testing conditions, appearance, dimensions, electrical and mechanical performance, as well as environmental and handling requirements.
The document provides detailed data such as inductance values, tolerance, DC resistance, self‑resonant frequency, allowable current, soldering recommendations, storage conditions and cautions for reliable use in electronic assemblies.
| Inductance (LQH32CNR15M33L) | 0.15 µH |
|---|---|
| DC Resistance (LQH32CNR15M33L) | 0.028 Ω |
| Operating Temperature Range | -25 °C to +85 °C |
| Storage Temperature Range | -10 °C to 40 °C |
| Parts per Reel (tape packing) | 2,000 pcs |
The coil can operate from –25 °C up to +85 °C.
A standard reel contains 2,000 pieces.
Store the coils between –10 °C and 40 °C.
