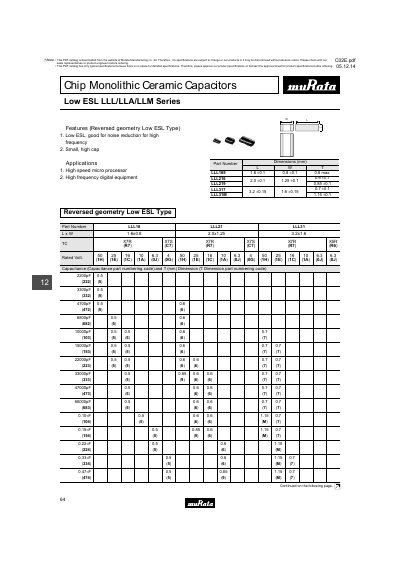

This datasheet provides detailed information of LLL/LLA/LLM series Chip Monolithic Ceramic Capacitors Low ESL, including part number, dimensions, rated voltage, capacitance, etc.
The LLL/LLA/LLM series are monolithic ceramic capacitors with a reversed‑geometry low‑ESL design. They are intended for high‑speed micro‑processor and high‑frequency digital equipment where low inductance is critical.
The document lists typical part numbers, dimensions, rated voltages, capacitance values and detailed test methods for storage, solderability, humidity and temperature cycling. It also includes safety cautions for handling and mounting.
| ESL (Eight terminals) | 100 pH |
|---|---|
| ESL (Ten terminals) | 45 pH |
| Rated Voltage | Up to 25 V |
| Capacitance example | 0.68 µF |
| Typical dimension (LLL18) | 1.6 × 0.8 mm |
They are intended for high‑speed micro‑processor and high‑frequency digital equipment.
