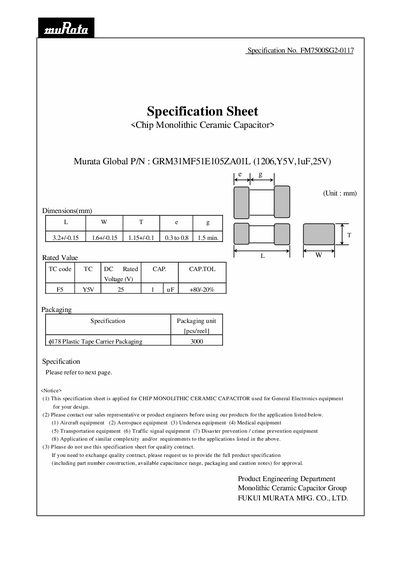

This document is a specification sheet for a chip monolithic ceramic capacitor used in general electronics equipment. The specifications include dimensions, rated value, packaging specification, etc.
This specification sheet provides the electrical and mechanical characteristics of the Murata GRM31MF51ELOSZAOIL monolithic ceramic capacitor, intended for general electronics equipment. It includes rated voltage, capacitance tolerance, dielectric type, dimensions, packaging, and test methods.
The document also lists environmental and reliability test conditions such as temperature range, humidity exposure, vibration, solderability, and adhesive strength, along with the required measurement procedures and acceptance criteria.
| Rated Voltage | 25 V |
|---|---|
| Capacitance | 1 µF |
| Dimensions (L × W × T) | 3.24 mm × 1.64 mm × 1.154 mm |
| Packaging | 3000 pcs/reel, plastic tape carrier |
| Operating Temperature Range | -55 °C to +125 °C |
| Insulation Resistance | >10 000 MΩ |
The rated voltage is 25 V.
The capacitor measures 3.24 mm × 1.64 mm × 1.154 mm (L × W × T).
It is supplied in a plastic tape carrier with 3000 pieces per reel.
It can operate from –55 °C up to +125 °C.
