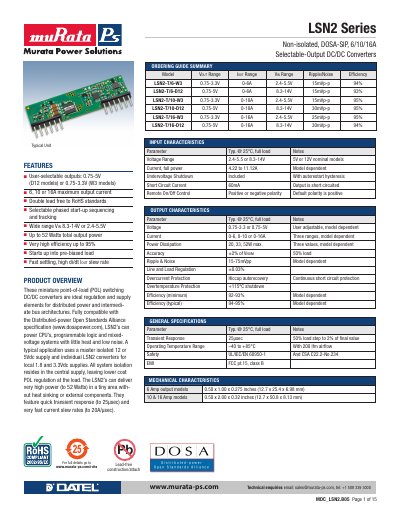

LSN2 series non-isolated, DOSA-SIP, 6/10/16A selectable-output DC/DC converters
The LSN2 Series are non‑isolated, DOSA‑SIP point‑of‑load DC/DC converters offering selectable output voltages of 0.75‑3.3 V or 0.75‑5 V and output currents of 6 A, 10 A or 16 A. They are designed for high efficiency (up to 95 % typical) and low noise, making them suitable for distributed‑power architectures.
The guide includes ordering tables, mechanical dimensions, electrical characteristics, safety information, and recommendations for input/output filtering, remote sense, and thermal management. It also describes protection features such as over‑current, over‑temperature, and undervoltage shutdown.
| Typical Efficiency | 94‑95 % |
|---|---|
| Switching Frequency | 315 kHz (6 A models) / 230 kHz (10 A & 16 A models) |
| Operating Temperature Range | –40 °C to +85 °C |
| Package Dimensions (6 A models) | 0.50 × 1.00 × 0.275 in (12.7 × 25.4 × 6.98 mm) |
Typical efficiency is 94 % to 95 % depending on the model.
