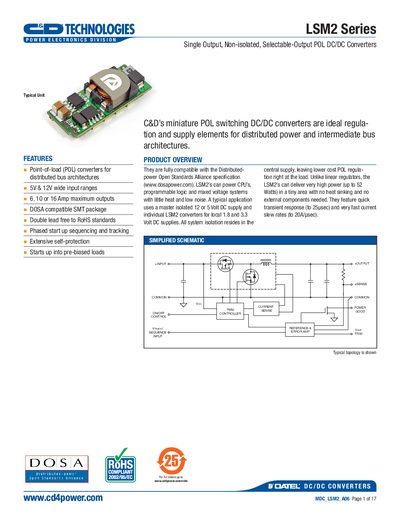

The LSM2 series from GE Technologies provides single‑output, non‑isolated point‑of‑load (POL) DC/DC converters in a range of output currents from 6 A to 16 A. The converters support 5 V and 12 V selectable outputs, operate without a minimum load, and include features such as fast transient response, remote sense, and power‑good monitoring.
The document contains detailed performance tables, part‑number structure, electrical characteristics, safety considerations, and application notes on input filtering, startup sequencing, and over‑current protection. It also outlines recommended external components and wiring practices for optimal operation.
| Maximum Output Current (6 A model) | 6 A |
|---|---|
| Maximum Output Current (10 A model) | 10 A |
| Input Voltage Range | 0.75 V – 3.3 V (W3) or 0.75 V – 5 V (D12) |
| Isolation | Non‑isolated |
| Start‑up Time (typical) | 7 ms |
The LSM2 series accepts an input voltage range of 0.75 V to 3.3 V for W3 models and 0.75 V to 5 V for D12 models.
No, the LSM2 converters are non‑isolated; the input and output commons are internally connected.
The typical start‑up time is about 7 ms for the output to reach its nominal voltage.
Yes, the On/Off Control pin can be used for remote on/off operation, with positive logic enabled when the pin is left open.
