The DATEL UCQ series DC/DC power converters offer high efficiency, compact size, low noise, and wide input range. It is suitable for power, industrial, communication, medical and other fields.
The UCQ series from Murata Power Solutions provides compact, quarter‑brick isolated DC/DC converters with output voltages from 1.2 V to 12 V and currents up to 40 A. The converters use an interleaved synchronous‑rectifier topology delivering up to 93 % efficiency and feature full 2250 Vdc isolation, remote on/off control, output trim and sense functions.

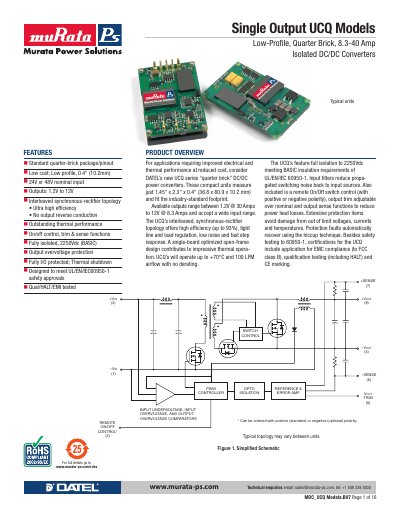

The document includes detailed performance tables, mechanical drawings, pin‑out information, isolation ratings, protection mechanisms, and environmental limits. Ordering guides list the available voltage and input‑range options (D24: 18‑36 V, D48: 36‑75 V) and optional features such as polarity control and baseplates.
| Output voltage range | 1.2 V to 12 V |
|---|---|
| Maximum output current | up to 40 A |
| Efficiency | up to 93 % |
| Switching frequency | 350 kHz ±20 kHz (typical) |
| Input voltage range (D24) | 18 V–36 V |
| Input voltage range (D48) | 36 V–75 V |
The converters achieve up to 93 % efficiency.
D24 models accept 18‑36 V and D48 models accept 36‑75 V input.
