This document is the specification sheet of GRM21BF51E225ZA01L, which mainly introduces the size, rated value, packaging specification and other information of the product.

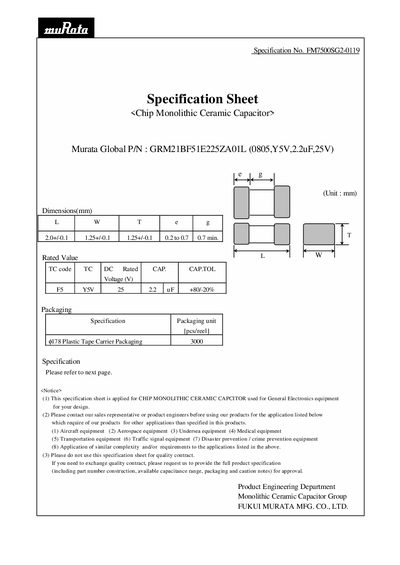

The document is a specification sheet for Murata's GRM21BF51E225ZA01L chip monolithic ceramic capacitor. It lists the part number, physical dimensions, dielectric type, rated voltage, capacitance value, tolerance and packaging information, and includes notices for appropriate applications.
Technical data such as operating temperature range, insulation resistance, dielectric strength and test methods are described in detail. The sheet also outlines the required handling, solderability and environmental test procedures for quality assurance.
| Part Number | GRM21BF51E225ZA01L |
|---|---|
| Capacitance | 2.2 µF |
| Rated Voltage | 25 V |
| Tolerance | +80% / -20% |
| Dielectric Type | Y5V |
| Dimensions (L×W×T) | 2.0 mm × 1.25 mm × 0.2‑0.7 mm |
| Operating Temperature Range | -55 °C to +125 °C |
| Insulation Resistance | >10 MΩ |
The rated voltage is 25 V.
It is a 2.2 µF capacitor with a tolerance of +80% / -20%.
It can operate from –55 °C to +125 °C.
