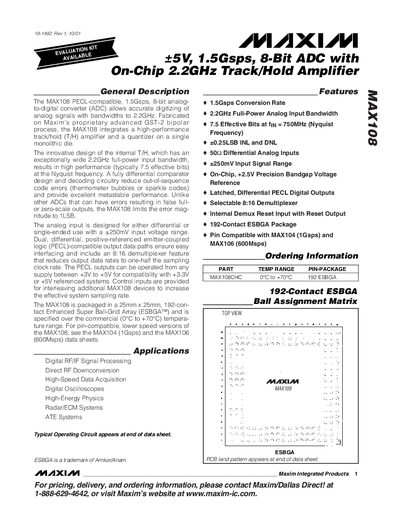

The MAX108 is a PECL-compatible, 1.5Gsps, 8-bit analog-to-digital converter (ADC) that allows accurate digitizing of analog signals with bandwidths to 2.2GHz.
The MAX108 is a PECL‑compatible, 1.5 Gsps, 8‑bit analog‑to‑digital converter that integrates a high‑performance track‑hold amplifier and quantizer on a single die. It supports differential or single‑ended inputs with a ±250 mV range and provides dual PECL‑compatible data outputs with an optional 8:16 demultiplexer.
Typical applications include high‑speed data acquisition, digital RF/IF signal processing, direct RF down‑conversion, digital oscilloscopes, radar/ECM systems, and ATE test equipment. The device is supplied in a 192‑contact Enhanced Super Ball‑Grid Array (ESBGA) package and operates over a commercial temperature range (0 °C to +70 °C).
| Conversion Rate | 1.5 Gsps |
|---|---|
| Full‑Power Input Bandwidth | 2.2 GHz |
| Effective Number of Bits (ENOB) | 7.5 bits at 750 MHz |
| Input Voltage Range | ±250 mV |
| Package | 192‑contact ESBGA (25 mm × 25 mm) |
The MAX108 can sample at up to 1.5 Gsps.
The analog inputs accept a ±250 mV signal range.
It is supplied in a 192‑contact Enhanced Super Ball‑Grid Array (ESBGA) package measuring 25 mm × 25 mm.
