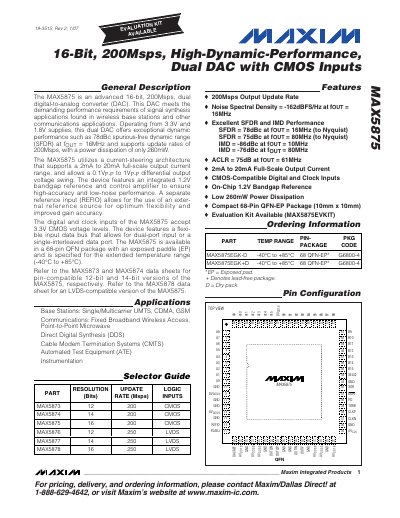

The MAX5875 is a high‑performance 16‑bit dual digital‑to‑analog converter designed for signal‑synthesis applications such as wireless base stations and broadband wireless access. It operates from 3.3 V and 1.8 V supplies, offers a 200 Msps update rate, and provides a differential output swing of 0.1 V‑1 V P‑P.
Key features include a current‑steering architecture with 2 mA‑20 mA full‑scale output current, an on‑chip 1.2 V bandgap reference, low power dissipation (260 mW), and a compact 68‑pin QFN‑EP package. The device supports CMOS‑compatible digital and clock inputs and is specified for –40 °C to +85 °C operation.
| Resolution | 16 bits |
|---|---|
| Maximum Update Rate | 200 Msps |
| Full‑Scale Output Current | 2 mA – 20 mA |
| Analog Supply Voltage Range | 3.135 V – 3.465 V |
| Digital Supply Voltage Range | 1.71 V – 1.89 V |
| Integrated Reference Voltage | 1.2 V bandgap |
| Spurious‑Free Dynamic Range (SFDR) at 16 MHz | 78 dBc |
| Noise Spectral Density at 16 MHz | -162 dBFS/Hz |
| Package | 68‑pin QFN‑EP |
| Operating Temperature Range | -40 °C to +85 °C |
The DAC can deliver a full‑scale output current from 2 mA up to 20 mA.
The device is supplied in a 68‑pin QFN‑EP (exposed pad) package.
