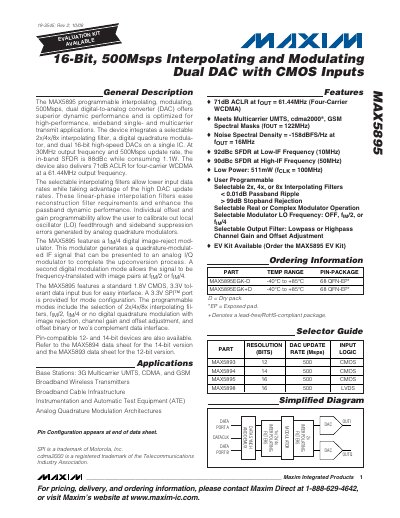

The MAX5895 is a programmable 500Msps dual channel digital-to-analog converter (DAC) that integrates a selectable 2x/4x/8x interpolation filter, a digital quadrature modulator, and dual 16-bit high-speed DACs on a single IC.
The MAX5895 is a programmable interpolating, modulating, 500 Msps dual‑channel digital‑to‑analog converter (DAC) optimized for high‑performance, wideband single‑ and multicarrier transmit applications. It integrates selectable 2×, 4× or 8× interpolating filters, a digital quadrature modulator, and dual 16‑bit high‑speed DACs on a single IC.
Key features include in‑band SFDR of 88 dBc at 30 MHz, low power consumption (1.1 W at full rate), selectable output filter types, and a standard 1.8 V CMOS, 3.3 V tolerant data bus with a 3.3 V SPI port for configuration. The device is offered in a 68‑pin QFN‑EP package and is supported by an evaluation kit.
| Resolution | 16 Bits |
|---|---|
| Total Power Dissipation | 511 mW |
| In‑band SFDR (30 MHz) | 88 dBc |
| Output Compliance | -0.5 V to +1.1 V |
| Reference Input Range | 0.125 V to 1.250 V |
Typical total power dissipation is about 511 mW, with a maximum of 1.1 W at full operation.
The device offers selectable 2×, 4×, or 8× interpolating filters.
The output can swing from –0.5 V to +1.1 V.
