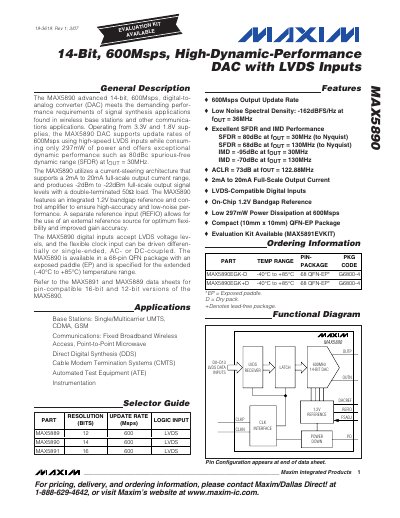

The MAX5890 is a 14-bit, 600Msps, high-performance digital-to-analog converter (DAC) that meets the demanding performance requirements of signal synthesis applications found in wireless base stations and other communications applications
The MAX5890 is a high‑performance 14‑bit current‑steering DAC designed for signal‑synthesis applications such as wireless base stations and test equipment. It operates from 3.3 V or 1.8 V supplies and supports update rates up to 600 Msps while drawing only 297 mW.
Key features include a full‑scale output current range of 2 mA‑20 mA, spurious‑free dynamic range of 80 dBc at 30 MHz, low noise spectral density of –162 dBFS/Hz at 36 MHz, and an integrated 1.2 V bandgap reference. The device is offered in a 68‑pin QFN‑EP package and includes flexible LVDS data and clock inputs.
| Resolution | 14 bits |
|---|---|
| Maximum Update Rate | 600 Msps |
| Power Dissipation | 297 mW |
| Full‑Scale Output Current | 2 mA – 20 mA |
| Spurious‑Free Dynamic Range (SFDR) | 80 dBc @ 30 MHz |
| Noise Spectral Density | -162 dBFS/Hz @ 36 MHz |
| Supply Voltage | 3.3 V / 1.8 V |
The MAX5890 supports a maximum update rate of 600 Msps.
At 600 Msps the device dissipates only about 297 mW.
The DAC can be powered from either a 3.3 V or a 1.8 V supply.
The device provides a full‑scale output current from 2 mA up to 20 mA.
