Maxim MAX1449 10-Bit 105Msps Single 3.3V Low-Power ADC with Internal Reference Datasheet

The MAX1449 is a 3.3V, 10-bit analog-to-digital converter (ADC) with fully differential input, pipelined 10-stage ADC architecture with wideband track-and-hold (T/H), and digital error correction incorporating a fully differential signal path. The ADC is optimized for low-power, high-dynamic performance in imaging and digital communications applications. The converter operates from a single 2.7V to 3.6V supply, consuming only 186mW while delivering a 58.5dB (typ) signal-to-noise ratio (SNR) at a 20MHz input frequency. The fully differential input stage has a -3dB 400MHz bandwidth and may be operated with single-ended inputs. In addition to low operating power, the MAX1449 features a 5µA power-down mode for idle periods. An internal 2.048V precision bandgap reference is used to set the ADC’s full-scale range. A flexible reference structure allows the user to supply a buffered, direct, or externally derived reference for applications requiring increased accuracy or a different input voltage range. Lower speed, pin-compatible versions of the MAX1449 are also available. Refer to the MAX1444 data sheet for a 40Msps version, the MAX1446 data sheet for a 60Msps version, and the MAX1448 data sheet for 80Msps. The MAX1449 has parallel, offset binary, CMOS-com- patible, three-state outputs that can be operated from 1.7V to 3.6V to allow flexible interfacing. The device is available in a 5mm x 5mm 32-pin TQFP package and is specified over the extended i

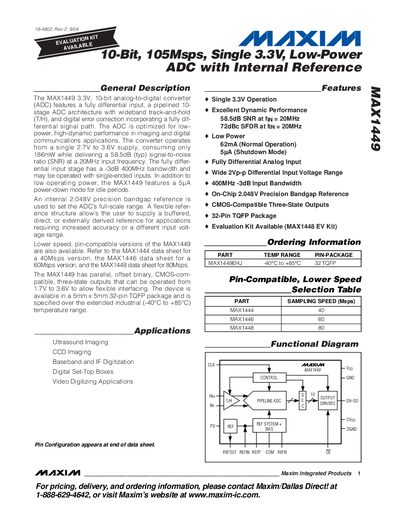

Maxim MAX1449 10-Bit 105Msps Single 3.3V Low-Power ADC with Internal Reference Datasheet - cover page
Brand
Maxim
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
21
File format
PDF
File size
358 KB
Published
07 May, 2012
Updated
29 September, 2023
Model
105MSPS
MD5 checksum
862FDF4027D1364DAD23FFBDA85625D6

About this manual

The MAX1449 is a 10‑bit analog‑to‑digital converter optimized for low‑power, high‑dynamic‑performance applications such as ultrasound imaging, CCD imaging, and digital set‑top boxes. It uses a pipelined 10‑stage architecture with a fully differential input stage, a wide‑band track‑and‑hold, and digital error correction. The device operates from a single 2.7 V to 3.6 V supply and includes a 2.048 V precision bandgap reference.

Typical specifications include a 105 Msps sampling rate, 58.5 dB SNR at 20 MHz, 72 dB SFDR at 20 MHz, and a -3 dB input bandwidth of 400 MHz. The MAX1449 is offered in a 32‑pin TQFP package (5 mm × 5 mm) and is rated for an industrial temperature range of –40 °C to +85 °C. Power consumption is 62 mA in normal operation and 5 µA in shutdown mode.

What's inside

  • General Description
  • Features
  • Applications
  • Absolute Maximum Ratings
  • Electrical Characteristics
  • Typical Operating Characteristics
  • Package Information
  • Ordering Information

Specifications

Resolution10 Bits
Maximum Sampling Rate105 Msps
Supply Voltage3.3 V (typ) to 3.6 V
Power Consumption (Normal)62 mA
Power Consumption (Shutdown)5 µA
Input Bandwidth (-3 dB)400 MHz
Signal‑to‑Noise Ratio58.5 dB at 20 MHz
Spurious‑Free Dynamic Range72 dB at 20 MHz
Package32‑Pin TQFP, 5 mm × 5 mm
Operating Temperature Range-40 °C to +85 °C
Internal Reference Voltage2.048 V
Output TypeCMOS‑compatible three‑state

Frequently asked questions

What is the maximum sampling rate of the MAX1449?

The MAX1449 can sample at up to 105 Msps (105 MHz).

What supply voltage does the MAX1449 require?

It operates from a single 2.7 V to 3.6 V supply, typically 3.3 V.

Does the MAX1449 include an internal reference?

Yes, it has an internal 2.048 V precision bandgap reference.

What is the typical power consumption in normal operation?

Typical normal‑operation current draw is 62 mA.
