Maxim Integrated MAX1444 10‑bit ADC Datasheet

the max1444 is a 10-bit, 3v analog-to-digital converter (adc) that features a pipelined 10-stage adc architecture with fully differential wideband track-and-hold (t/h) input and digital error correction incorporating a fully differential signal path. this adc is optimized for low-power, high dynamic performance applications in imaging and digital communications. the max1444 operates from a single 2.7v to 3.6v supply, consuming only 57mw while delivering a 59.5db signal-to-noise ratio (snr) at a 20mhz input frequency. the fully differential input stage has a 400mhz -3db bandwidth and may be operated with single-ended inputs. in addition to low operating power, the max1444 features a 5µa power-down mode for idle periods. an internal 2.048v precision bandgap reference is used to set the adc full-scale range. a flexible reference structure allows the user to supply a buffered, direct, or externally derived reference for applications requiring increased accuracy or a different input voltage range. higher speed, pin-compatible versions of the max1444 are also available. please refer to the max1446 data sheet (60msps) and the max1448 data sheet (80msps). the max1444 has parallel, offset binary, cmos-compatible three-state outputs that can be operated from 1.7v to 3.6v to allow flexible interfacing. the device is available in a 5x5mm 32-pin tqfp package and is specified over the extended industrial (-40°c to +85°c) temperature range.

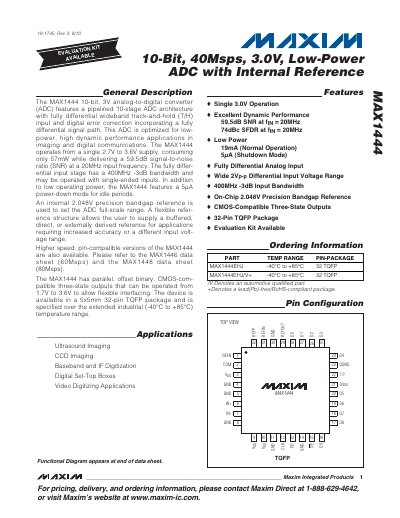

Maxim Integrated MAX1444 10‑bit ADC Datasheet - cover page
Brand
Maxim
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
20
File format
PDF
File size
278 KB
Published
07 May, 2012
Updated
01 October, 2023
Model
MAX1444
MD5 checksum
AA8F9CA4A173C84000A6FD0381CC2E17

About this manual

The MAX1444 is a 10‑bit analog‑to‑digital converter optimized for low‑power, high‑dynamic‑performance applications such as imaging and digital communications. It operates from a single 2.7 V to 3.6 V supply and consumes only 57 mW while delivering 59.5 dB SNR at a 20 MHz input frequency.

Key features include a fully differential wide‑band track‑and‑hold front end with 400 MHz -3 dB bandwidth, a 2.048 V precision bandgap reference, CMOS‑compatible three‑state offset‑binary outputs, and availability in a 32‑pin TQFP package. The device is specified over an extended industrial temperature range of –40 °C to +85 °C and supports both differential and single‑ended inputs.

What's inside

  • General Description
  • Absolute Maximum Ratings
  • Electrical Characteristics
  • Dynamic Characteristics
  • Pin Description
  • Typical Operating Characteristics
  • Reference Design
  • Layout Recommendations

Specifications

Resolution10 bits
Supply Voltage2.7 V to 3.6 V
Power Consumption (normal operation)57 mW
Maximum Clock Frequency40 MHz
Input Bandwidth (-3 dB)400 MHz
Internal Reference Voltage2.048 V
Package32‑pin TQFP, 5 mm × 5 mm

Frequently asked questions

What is the operating temperature range of the MAX1444?

The device is specified from –40 °C to +85 °C.

How much current does the MAX1444 draw in power‑down mode?

It draws 5 µA in shutdown mode.

What type of digital output does the MAX1444 provide?

It provides CMOS‑compatible three‑state offset‑binary outputs.

What is the reference input voltage for the internal reference?

The reference input voltage is 2.048 V.
