Maxim MAX1420 12-Bit 60Msps 3.3V Low-Power ADC with Internal Reference Datasheet

The MAX1420 is a 3.3V, 12-bit analog-to-digital converter (ADC) with a fully-differential input, pipelined, 12-stage ADC architecture featuring wideband track-and-hold (T/H) and digital error correction. It is designed for low-power, high dynamic performance applications in imaging and digital communications. The ADC operates from a single 3.3V supply and consumes only 221mW. The fully-differential input stage has a small signal -3dB bandwidth of 400MHz and can be operated with single-ended inputs. The full-scale range of the ADC is set by an internal 2.048V precision bandgap reference. The ADC also features a flexible reference structure that allows for an internal reference or externally applied buffered or unbuffered reference for applications requiring increased accuracy and a different input voltage range. In addition to low operating power, the MAX1420 offers two power-down modes: reference power-down and shutdown mode. In reference power-down mode, the internal bandgap reference is deactivated, resulting in a typical 2mA reduction in supply current. The full shutdown mode is available to maximize power savings during idle periods. The MAX1420 provides parallel, offset binary, CMOS-compatible three-state outputs. It is available in a 7mm x 7mm x 1.4mm, 48-

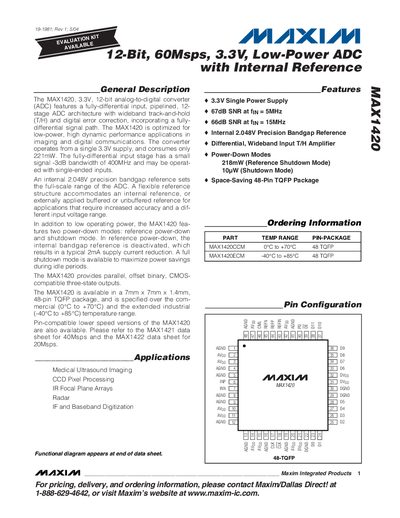

Maxim MAX1420 12-Bit 60Msps 3.3V Low-Power ADC with Internal Reference Datasheet - cover page
Brand
Maxim
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
17
File format
PDF
File size
328 KB
Published
07 May, 2012
Updated
29 September, 2023
Model
60MSPS
MD5 checksum
80F590F4C195D5DFAC1D5DFD6AC51C9F

About this manual

The MAX1420 analog‑to‑digital converter offers a 12‑bit resolution and up to 60 MHz sampling rate while consuming only about 221 mW typical power. It operates from a single 3.3 V supply and includes an internal 2.048 V precision bandgap reference, a fully‑differential input stage, and two power‑down modes (reference shutdown and full shutdown) for ultra‑low standby consumption.

The device is supplied in a 48‑pin TQFP package (7 mm × 7 mm × 1.4 mm) and is rated for a temperature range of –40 °C to +85 °C. Electrical characteristics include a 400 MHz –3 dB input bandwidth, SNR of 67 dB at 5 MHz and 62 dB at 15 MHz, and a typical analog power dissipation of 221 mW. Detailed timing, functional diagrams, and package drawings are provided in the document.

What's inside

  • General Description
  • Features
  • Absolute Maximum Ratings
  • Electrical Characteristics
  • Timing Characteristics
  • Typical Operating Characteristics
  • Functional Diagram
  • Package Information

Specifications

Resolution12 bits
Maximum Sample Rate60 MHz
Supply Voltage3.3 V (single supply)
Internal Reference Voltage2.048 V
Typical Power Dissipation221 mW
Input Bandwidth (‑3 dB)400 MHz
SNR at 15 MHz62 dB
Package48‑pin TQFP, 7 mm × 7 mm × 1.4 mm

Frequently asked questions

What supply voltage does the MAX1420 require?

The MAX1420 operates from a single 3.3 V supply.

What is the typical analog power dissipation?

Typical analog power dissipation is 221 mW.

What is the maximum clock frequency the device can handle?

The maximum clock frequency is 60 MHz.
