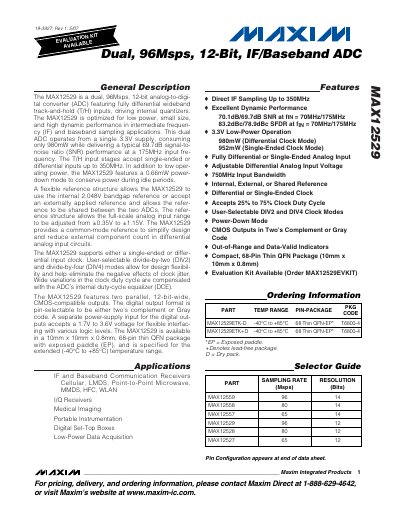

The MAX12529 is a dual, 96 Msps, 12‑bit analog‑to‑digital converter designed for IF and baseband sampling applications. It operates from a single 3.3 V supply, consuming under 1 W in normal mode and offering a power‑down mode for low standby power. Key features include fully differential wideband track‑and‑hold inputs, selectable reference structures, CMOS‑compatible digital outputs, and a compact 68‑pin thin QFN package. The device supports both single‑ended and differential clocking with user‑selectable divide‑by‑2 or divide‑by‑4 modes.
| Sampling Rate | 96 Msps |
|---|---|
| Power Consumption (normal mode) | 980 mW |
| Input Bandwidth | 750 MHz |
| Resolution | 12 bits |
The device supports an input bandwidth up to 750 MHz.
In power‑down mode the ADC consumes only 0.66 mW.
